DESCRIPTION

Overview

Basic Info.

Type	Electric Hoist
Sling Type	Wire Rope
Lift Speed	2~8m/min
Maximum Lifting Height	30m
Chain Falls	1
Certification	CE, ISO9001:2000
Condition	New
Color	Customized
Lifting Height	6~30m
Insulation Grade	F
Product Name	Low Headroom Hoist
Working Duty	A5/M5
Voltage	220V-460V 3pH AC
Running Rail	I36A~63c
Environment Temperature	-20~45
Protection Grade	IP54
Power Supply	Electric
Max Lifting Weight	20 Ton
Transport Package	Plywood Box
Specification	Net weight: 120-1290kgs
Trademark	NYBON
Origin	China
HS Code	842531900
Production Capacity	100 Sets Per Month

Packaging & Delivery

Package Size 6000.00cm * 4556.00cm * 456.00cm Package Gross Weight 2563.000kg

Product Description

Product Description

Cheap Remote Control Electric Lifting Hoists for Jib Crane/Mini Gantry Crane

Electric hoist hold the characteristic as compact structure, light dead weight and easy operation. It can be installed on I-steel or working together with single beam crane, double beam crane, jib crane and so on. For the high precision, MD type with double lift speeds will be the better helper. Conical rotor motor adapted, combine the power and brake power into one. High strength steel material for hook, and hook lock included. Current overload, voltage overload, and other safety device for electrical parts.
Electric Wire Rope Hoist-Operating Conditions:1.Altitude does not exceed 1000m2.Ambient air temperature is -20 ° C ~ +40 ° C3.Ambient air humidity is not more than 85% (at 25 ° C)4.Power: three-phase AC, 380V, 50HZ. Motor terminal voltage fluctuation ±10%5.The electric hoist is generally installed indoors. When installing outdoors, a rain cover should be added.When the above environmental conditions are not met, special orders are made according to non-standard products.

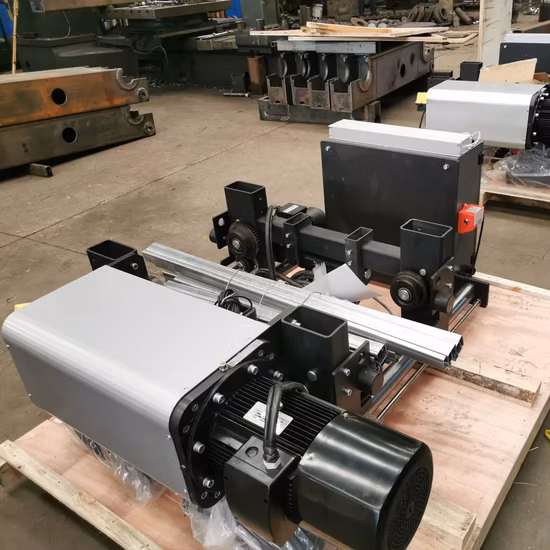

Electric Wire Rope Hoist-Main Structure:Reducer, running organizations, roller equipment, hook devices, couplings, flexible cable current into the device andstopper.Motor is with cone rotor motors, set the power and braking force in one.

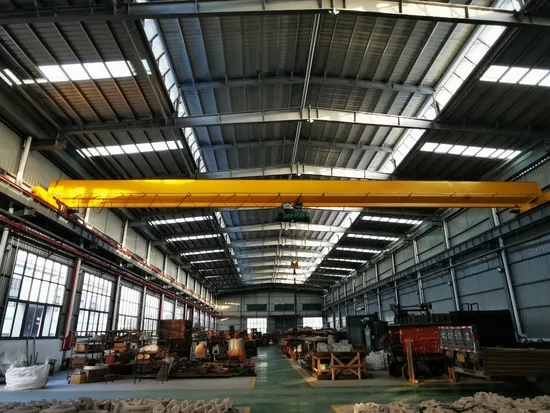

Electric Wire Rope Hoist-Installation:a) Used with LD and LX single beam cranesb) Mounted on a fixed suspended I-beam rail for linear or curved movementc) Fixed installation, for lifting or winch, divided into four ways: upper, lower, left and rightElectric hoists are not suitable for use in environments with explosive or corrosive gases. They are also not suitablefor liftingmolten,red hot metals,other flammable and explosive materials.

Main Technical Parameter

Type		CD1, MD1
Lifting weight(T)		0.25	0.5	1	2	3	5	10	16	20
Lifting height(m)		3.6.9		6.9.12.18.24.30					9.12.18
Hoisting speed(m/min)		8 0.8/8						7 0.7/7	3.5 0.35/5	4
Travelling speed(m/min)		20	20/30						20
Wire rope	Dia	3.6	4.8	7.7	11	13	15	15	1735	19.5
	spec	6x19	6 x 37 + 1
Hoisting Motor	Type	ZD112-4	ZD121-4	ZD122-4	ZD131-4	ZD132-4	ZD141-4	ZD151-4		ZD152-4
			ZDS0.2/0.8	ZDS0.2/1.5	ZDS0.4/3.0	ZDS0.4/4.5	ZDS0.8/7.5	ZDS1.5/13	ZDS1.5/13
	Power(kw)	0.4	0.8 0.2/8	1.5 0.2/5	3.0 0.4/3.0	4.5 0.4/4.5	7.5 0.8/7.5	13 1.5/13	13 1.5/13	18.5
	Rotate speed	1380 (r/min)
	Current(A)	1.25	2.4 0.72/2.4	4.3 0.72/4.3	7.6 1.25/7.6	11 2.4/11	18 2.4/18	30 4.3/30		41.7
Travelling Motor	Type	ZDY110-4	ZDY111-4		ZDY112-4		ZDY121-4
	Power(kw)	0.06	0.2		0.4		0.8	0.8x2
	Rotate speed	1400(r/min)	1380(r/min)
	Current(A)	0.3	0.72		1.25		2.4			4.3
NO of connecting		120
Working system		Intermediate FC=25% M3
Power source		380V 50HZ 3phs

Production Process

Application

Company Profile

Packaging & Shipping

Main Products

FAQ

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?

A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

A: Yes; We have;

6. Q: What kinds of products do you have?

A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

8. Q: Could your winches drag inclined?

A: Yeah, our electric winches could drag horizontal, drag inclined, hoisting vertical.
